Linear Guide Introduction

The linear guide, also known as a linear guide rail or guide rail, is a crucial mechanical component used to support and guide moving parts, such as sliders, linear modules, and more, along predefined paths for precise positioning or continuous movement.

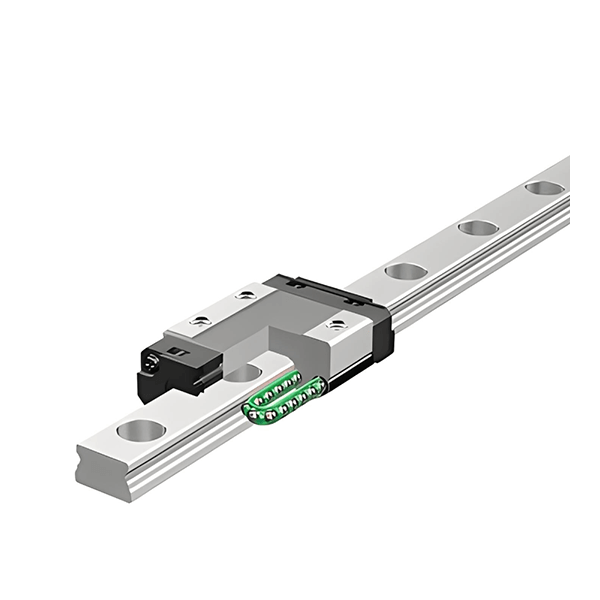

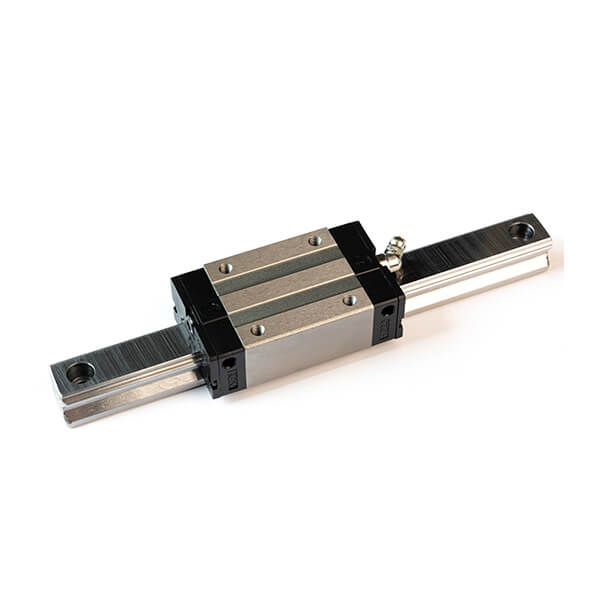

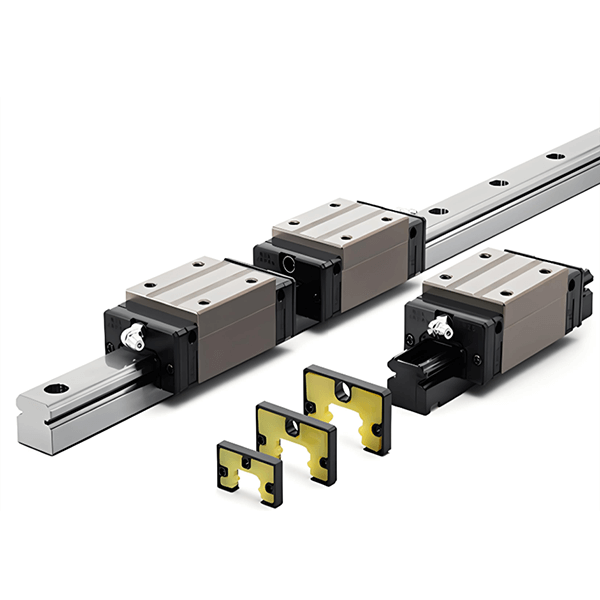

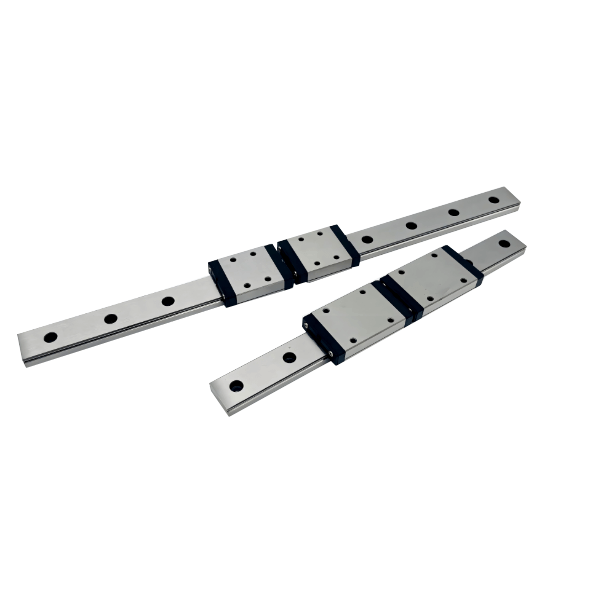

A linear guide consists of a guide rail that is typically stationary and a slider that moves along the rail. The guide rail is attached to a bed or platform, while the slider, which holds the moving part of the device, glides smoothly along the rail. The combination of the guide rail and slider offers high stiffness, precision, and velocity, along with low friction and noise, and exceptional durability, making it an excellent choice for a wide range of industrial applications.

During the design and manufacturing process of linear guides, meticulous attention is paid to factors like material stiffness, wear resistance, and heat treatment. These factors significantly impact the overall performance and longevity of the linear guide, necessitating rigorous testing and selection procedures. Additionally, to accommodate diverse application requirements, linear guides are available in various specifications and sizes.

However, to ensure optimal performance and longevity, regular maintenance and care should be observed when using linear guides. Excessive loads or impact must be avoided to prevent premature damage. Proper care and upkeep will help maximize the lifespan of linear guides, enhancing the efficiency and dependability of the equipment they support.

The characteristics of linear guide rails

1. High stiffness: Provides stable support, reducing vibration and deformation.

2. High precision: Low friction, high repeatability.

3. Longevity: Wear-resistant, corrosion-resistant, reducing maintenance needs.

4. High-speed motion: Low damping, high response speed.

5. Easy installation: Compact design, easy to integrate into various systems.
